Hypertherm XPR170 Plasma Cutting System
Click to enlarge.
The XPR170® mechanized plasma cutting system delivers next-generation X-Definition® performance for cutting mild steel, stainless steel, and aluminum from very thin up to mid-range thicknesses. With a maximum output of 170 amps, it offers superior cut quality, increased cutting speeds, and reduced operating costs. Advanced features like ramp-down error protection, EasyConnect™ torch lead, QuickLock™ electrode, and built-in Wi-Fi for system monitoring enhance ease of use and reliability. Multiple console options: Core™, CorePlus™, Vented Water Injection™ (VWI™), and OptiMix™; provide flexibility to optimize cutting capabilities across various materials.
Benefits of the XPR170
Industry-Leading X-Definition® Cut Quality
The XPR170 sets a new benchmark for HyDefinition® performance by combining advanced torch technologies and refined cutting processes to deliver next-generation X-Definition® quality across mild steel, stainless steel, and aluminum.
Achieves consistent ISO Range 2 results on thin mild steel
Extends ISO Range 3 quality to thicker mild steel and stainless steel
Delivers exceptional cut precision and edge quality on stainless steel
Superior aluminum results with Vented Water Injection™ (VWI) technology
Optimized Productivity & Lower Operating Costs
Engineered for high-efficiency cutting, the XPR170 maximizes throughput while significantly lowering operational expenses.
Substantial cost savings over previous-generation plasma systems
Faster cut speeds on thick materials for increased output
Dramatically improved consumable life in mild steel applications
Greater piercing capability than competing systems in its class
Intelligent System Design for Reliability & Ease of Use
The XPR170 includes built-in features that extend consumable life, simplify maintenance, and support connected workflows.
Ramp-down error protection prolongs consumable performance
Smart diagnostics and system monitoring reduce unplanned downtime
EasyConnect™ torch lead and single-hand connection streamline changeovers
QuickLock™ electrode enables fast, tool-free consumable swaps
Built-in Wi-Fi allows mobile and LAN connectivity for system monitoring
Fully IoT-compatible for integration into modern, connected operations
Click to enlarge.
The XPR170® plasma cutting system offers advanced process control through four distinct gas console options—Core™, CorePlus™, Vented Water Injection™ (VWI™), and OptiMix™—each tailored to specific cutting needs and material types. These consoles are fully CNC-integrated, allowing for seamless operation and high productivity.
Core™ Console … ideal for operations focusing primarily on mild steel, the Core console utilizes oxygen, nitrogen, and air gases to deliver full X-Definition® cut quality on mild steel and entry-level capabilities on stainless steel and aluminum.

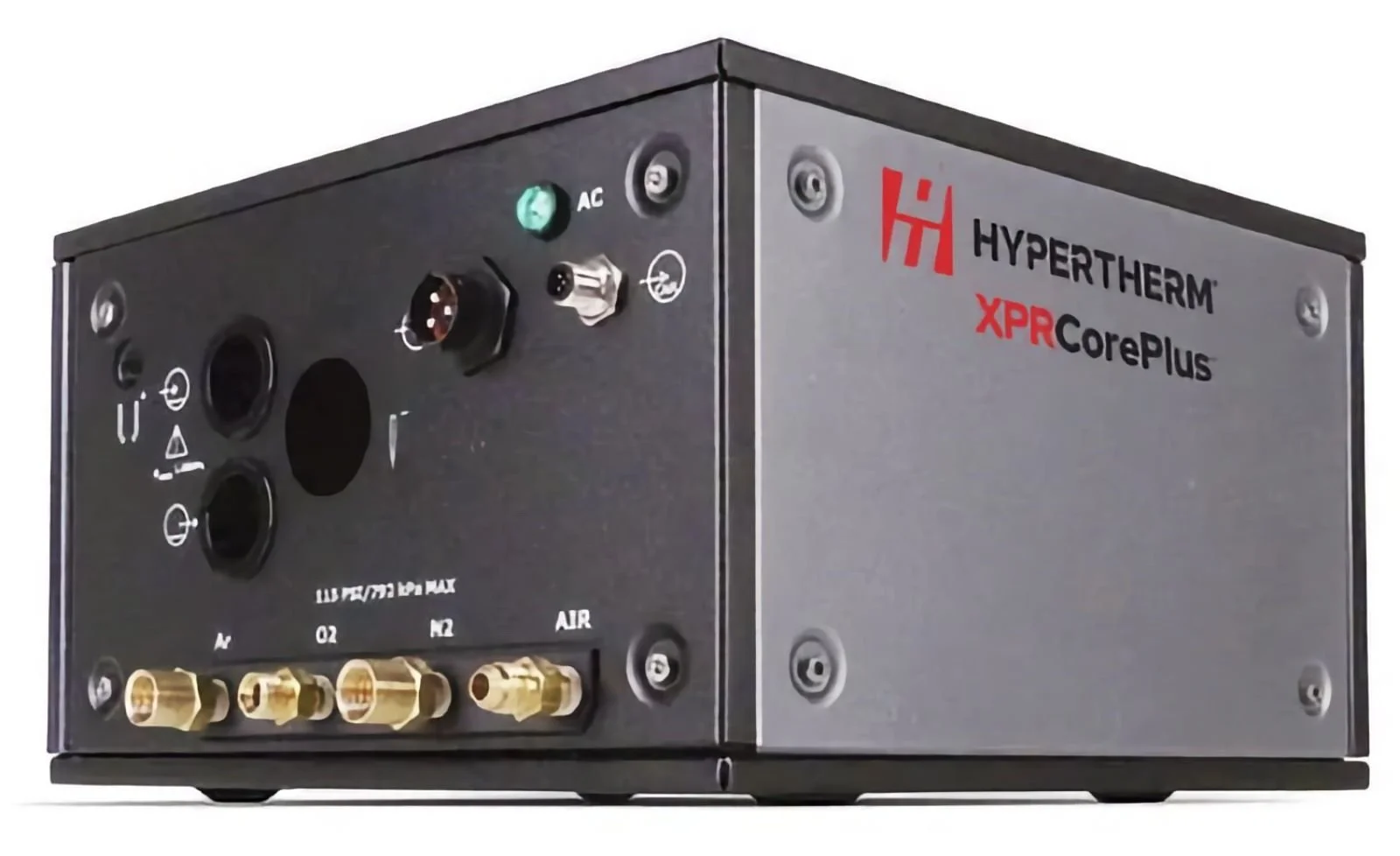

CorePlus™ Console … building upon the Core console, CorePlus introduces argon gas capability, enabling superior marking on all materials and enhanced piercing performance on thicker materials through argon-assist technology.
Vented Water Injection™ (VWI™) Console … designed for users requiring improved cut quality on stainless steel and aluminum, the VWI console incorporates water-injection shielding and F5 gas (a nitrogen-hydrogen mix), offering excellent cutting outcomes and high-quality marking.
OptiMix™ Console … for the most demanding applications, the OptiMix console allows for the mixing of up to three gases—hydrogen, nitrogen, and argon—providing unparalleled cut quality on stainless steel and aluminum, especially for thicker materials.
Each console’s gas compatibility is as follows:
| Gas/Fluid | Core | CorePlus | VWI | OptiMix |
|---|---|---|---|---|
| O₂ / N₂ / Air | ✔ | ✔ | ✔ | ✔ |
| Argon (Ar) | ✔ | ✔ | ✔ | |
| F5 / Ar / H₂O | ✔ | ✔ | ||
| H₂-N₂-Ar Mixing | ✔ |
Specifications

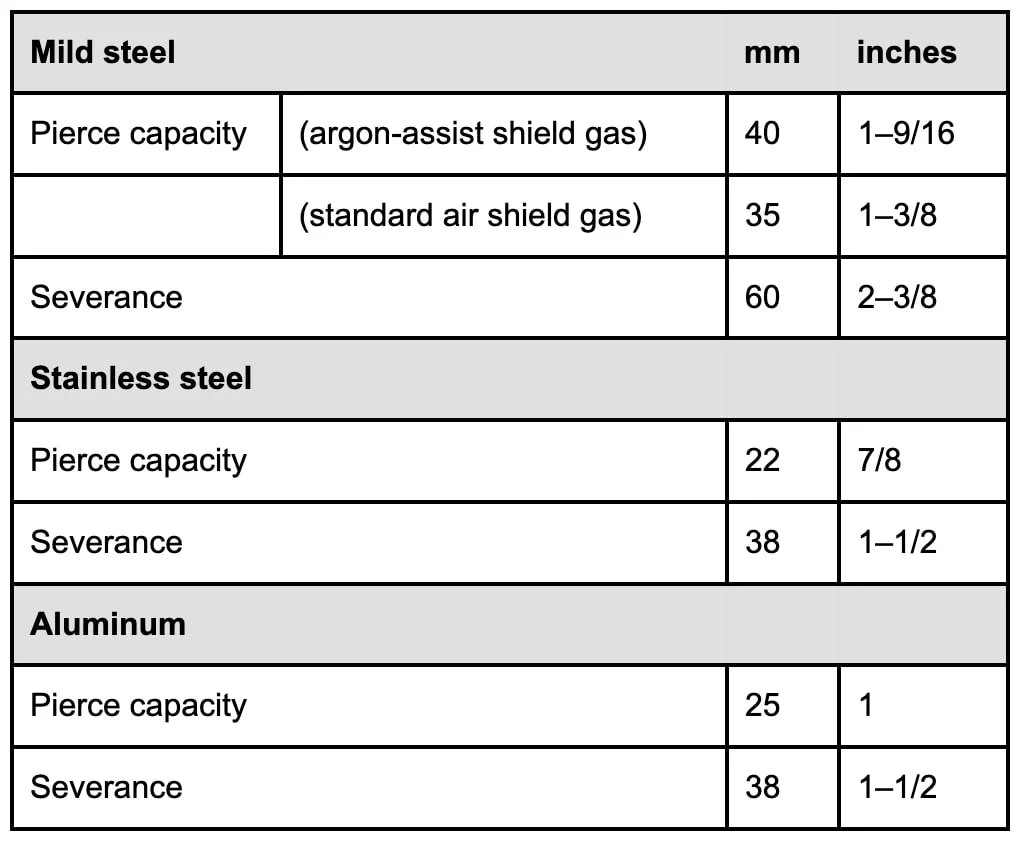

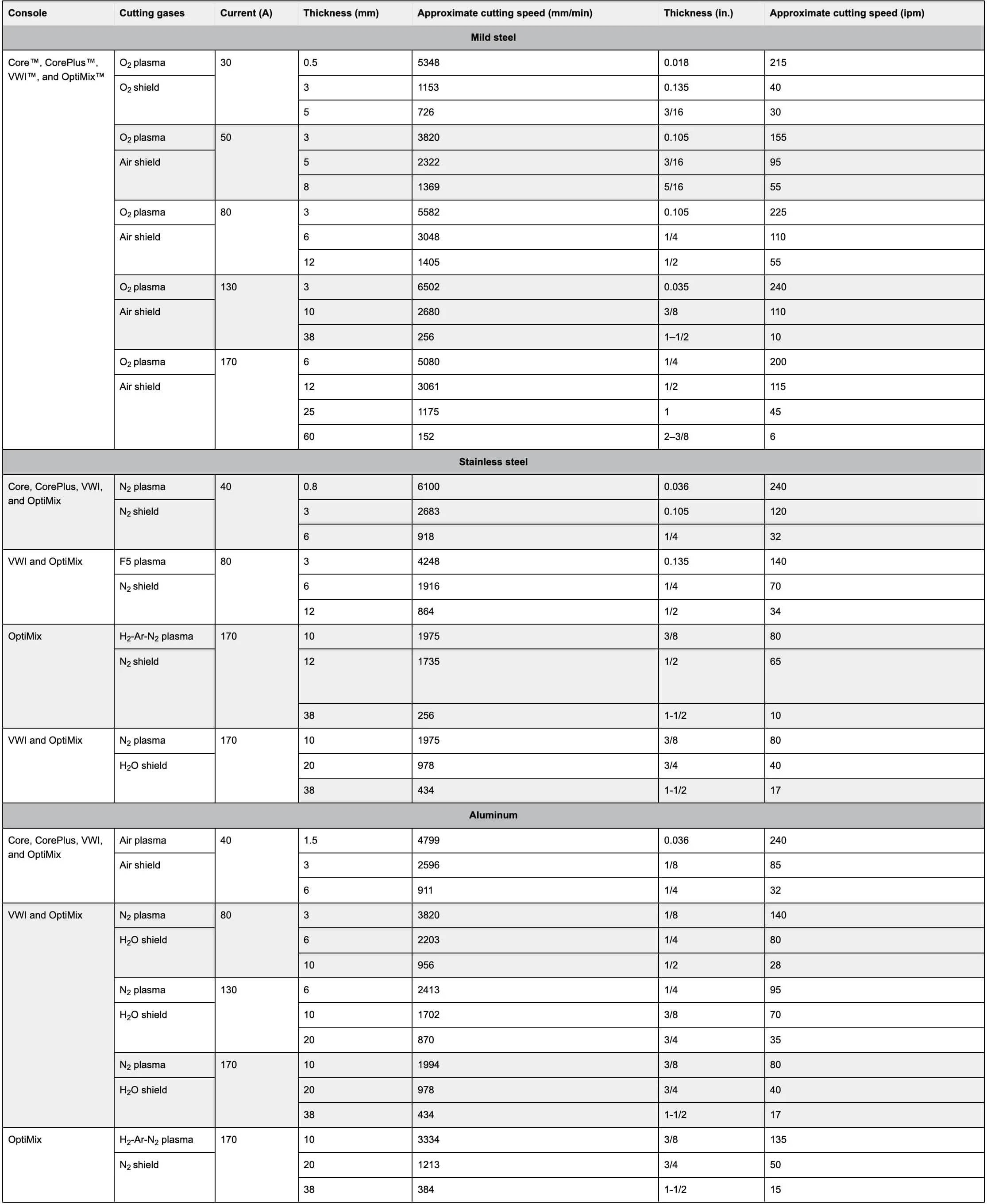

Operating Data
This does not represent a complete list of processes or thicknesses that are available.
