ESPRIT VIPER GAS Cutting Retrofit
The Esprit Viper machine had an EDGE controller running CNC OXY Gas cutting. The controller had a variety of issues and the machine became unreliable.
CR PLASMA fitted a full retrofit to the machine updating the system with the following
New Gas Cutting Torch
New Gas Control Manifold
New Pipes and solenoids and all fittings
New Modern AC servo motors.
News Homing Sensors
New Cables
New Controller
The project kept
The cutting table
The main XY Gantry
Gearboxes racks and pinions on XY
CR- PLASMA - 25mm Plates CNC Gas cut
The ESPRIT VIPER was bought back to life wth a CR PLASMA Retrofit. The machine is shown here cutting 25mm plate with the new gas cutting system
The machine was fully refitted with new gas managment system and CNC controller.
Machine is now back in daily production
60mm and 130mm plate
All you need are two bottles of Oxygen, 1 bottle of Propane and a three pin plug!
Bevel Cutting
See below for some Bevel Cutting under CNC GAS control.
CR PLASMA Retrofit - Cutting 60mm plate

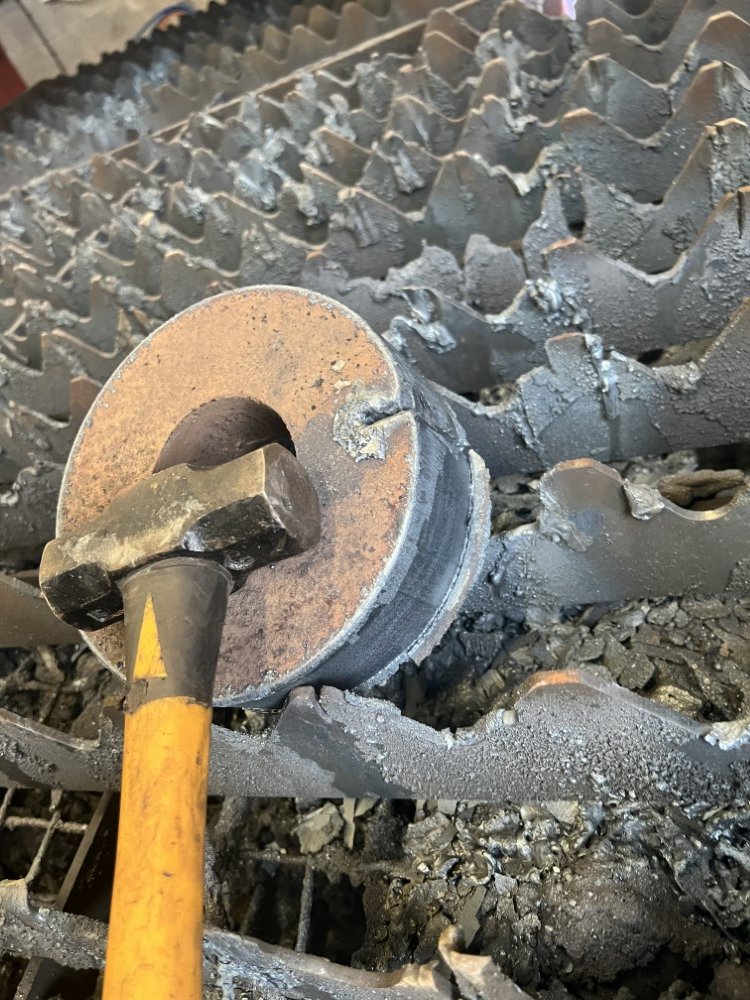

The video and images here show the CR PLASMA retrofit of the Esprit Viper machine succesfully piercing and cutting 60mm plate to manufacture a large washer. the CR PLASMA system has a very easy to use gas cutting interface
Mangement of the preheat, pierce and cut heights
Managent of the prehead pressures and times
Management of dual stage Oxygen pierce moving from pierce to cut.
On the fly height management
CNC OXY Cutting 40mm plate
See here for some large packers in 40mm plate cut on the CNC Gas cutting system as part of this retrofit solution.
